Natural Stone Support Systems





Adjustable Natural Stone Supports for Stone Cladding

Natural Stone support systems allow the fast and easy installation of stone cladding walls and can accommodate all types of load bearing substrates whether they are concrete walls, block work & masonry walls or steel structures.

The following points are taken into consideration when designing a fixing system for natural stone installation.

  • Stone dimensions.
  • Cavity structure: projection size and isolation.
  • Application type: horizontal or vertical joint installation.
  • Joint size.
  • Structural wall backing.
  • Height of façade.
  • Relevant dynamic loads such as wind and seismic loads.
  • Design criteria of the project.

HAZ Metal proposes and specially designs fixing systems for natural stone cladding according to individual project requirements.


Direct fixing to concrete walls with expansion bolts

Fixing to concrete with bolt anchors using expansion bolts. Insulation is cut at each anchoring point.

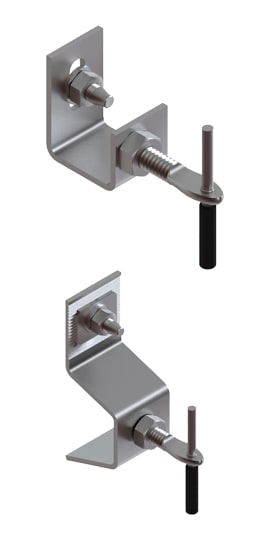

HZ Z Anchor Fixing System

  • Fixing to concrete with bolts.
  • Projection sizes up to 135 mm.
  • Recommended for loads up to 800N.
  • Installation at horizontal or vertical joints
View types of HZ Z anchors

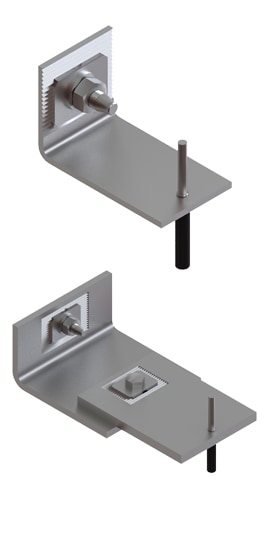

HA L Anchor Fixing System

  • Fixing to concrete with bolts.
  • Can be used for 50 mm and larger stone thicknesses.
  • Various types to enable adjustability.
  • Installation at horizontal joints only
View types of HA L Anchors

Direct fixing to concrete or masonry walls with mortar

Fixing to concrete with mortar anchors using mortar. Insulation is drilled at each anchoring point.

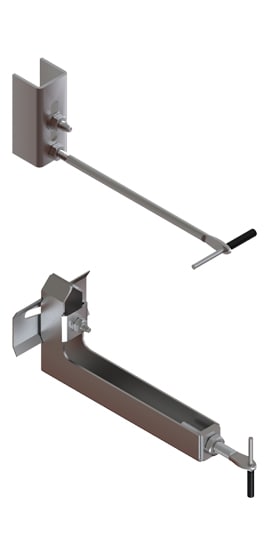

AXO Body Anchor Fixing

  • Fixing to concrete with bolts.
  • Projection sizes up to 260 mm.
  • Recommended for loads up to 1300 N.
  • Installation at horizontal or vertical joints.
  • Optimum static performance.
View types of AXO Body Anchors

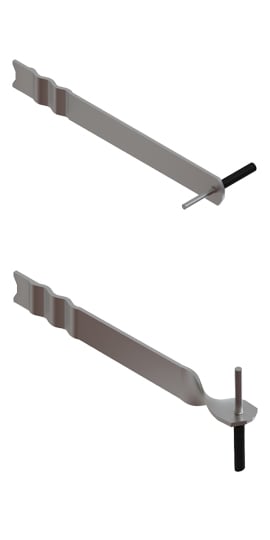

HSD Mortar Anchor Fixing System

  • Fixing to masonry with mortar.
  • Various types to fit a range of load and projection sizes.
  • Installation at horizontal or vertical joints.
  • Three dimensional adjustability.
Types of Mortar Anchors
