Masonry Support – Brickwork Support





Brickwork Support Systems

Brickwork support & Masonry support systems are used for the secure and easy installation of brickwork facades. The brickwork brackets are used to transfer the dead loads of non load bearing outer shell brickwork walls & masonry walls cladding to the load bearing inner walls of building. Load bearing masonry support brackets are fixed on concrete beams which carry the dead load of the façade.

HRST Restraints Ties or HWT-M wall ties are used along the rest of the storey height to secure the brickwork facade against wind loads.

The following points should be carefully evaluated when designing a masonry facade

  • thickness of insulation and air gap
  • design of details, such as,
  • wall areas,
  • joints,
  • external and internal corners,
  • lintels above doors and windows,
  • and columns.

Many product variations are available for these situations, including the fixings of pre-cast brickwork lintels and prefabricated elements.

The thickness of the insulation together with the air gap make up the protection size that makes up the distance between structural backing and facing brick wall. The greater the distance is between the two layers, the larger has to be the protection K of the support brackets.

Brickwork & masonry restraints ties and wall ties are used to retain the outer shell brick and masonry wall cladding. The wall ties and restraint ties are designed to with stand the wind loads.

The Brick and masonry support brackets are designed to be positioned at concrete slab or steel beam level and are fixed on to the substrate either by anchor channels or anchor bolts.

Brickwork Support Brackets

A brickwork wall which is built with bricks, is formed out of a load bearing inner wall, and insulating layer and an outer wall. The outer wall cannot be used for load bearing purposes nor can it be used for attachments of various component. The outer wall is a design element that satisfies the aesthetics and also serves as a means of weather protection. The outer wall which is constructed of layers of brickwork needs to be supported at regular intervals. The load of brickwork is transferred on to the inner load bearing wall by brickwork support brackets. Restraining of the outer wall is made with restraint wall ties. Therefore, both the inner and outer wall shells are connected to each other with load bearing brackets and restraint wall ties.
Types of Brickwork Support Brackets

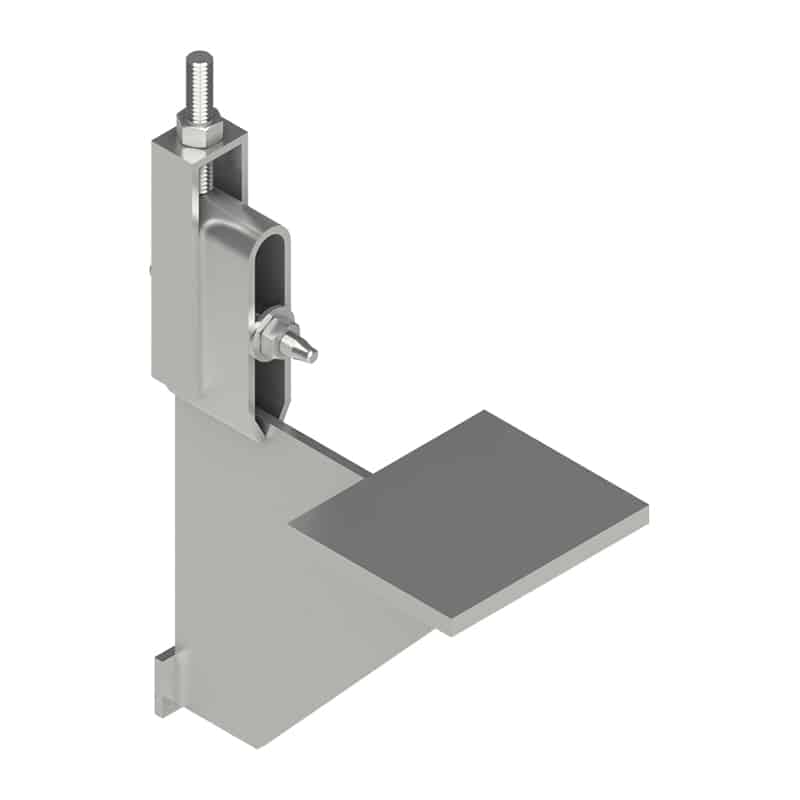

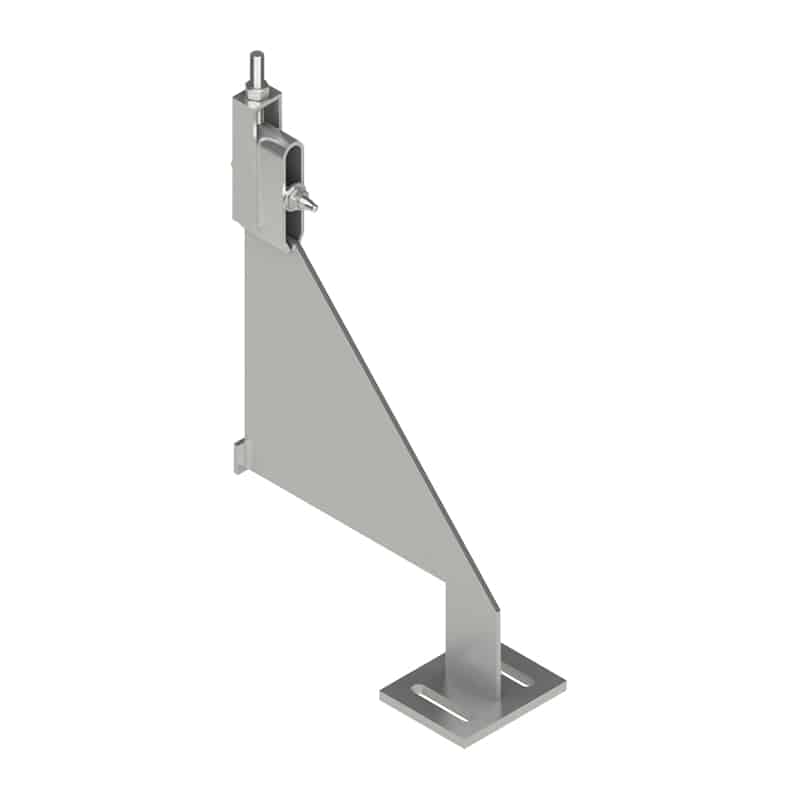

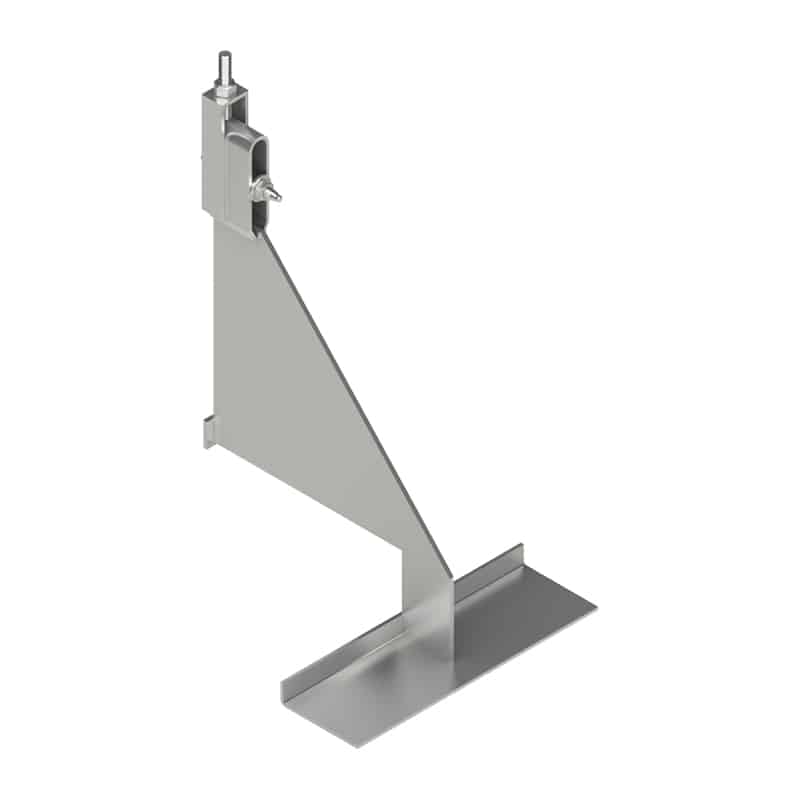

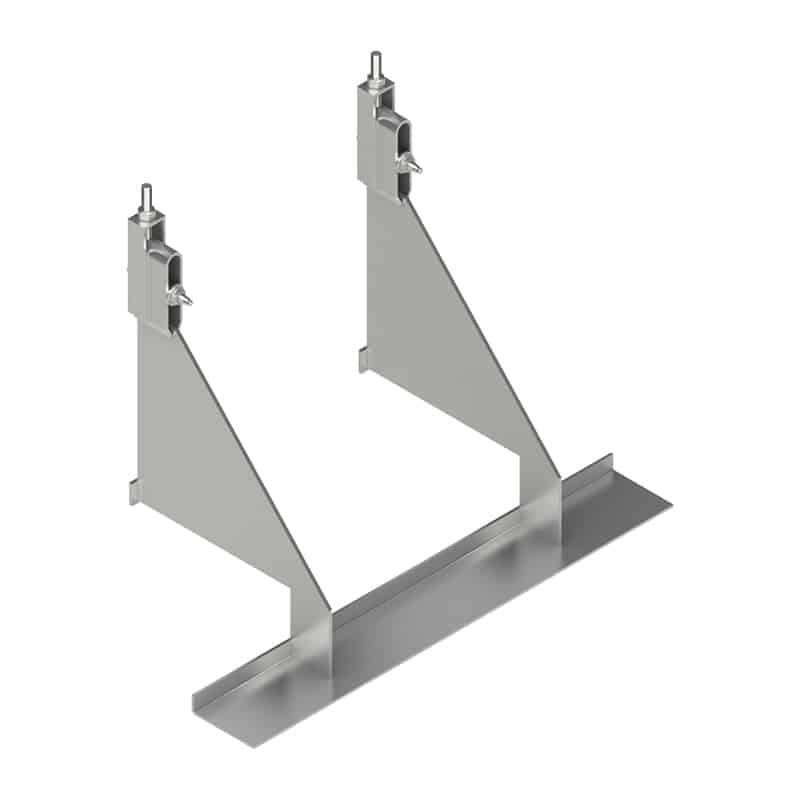

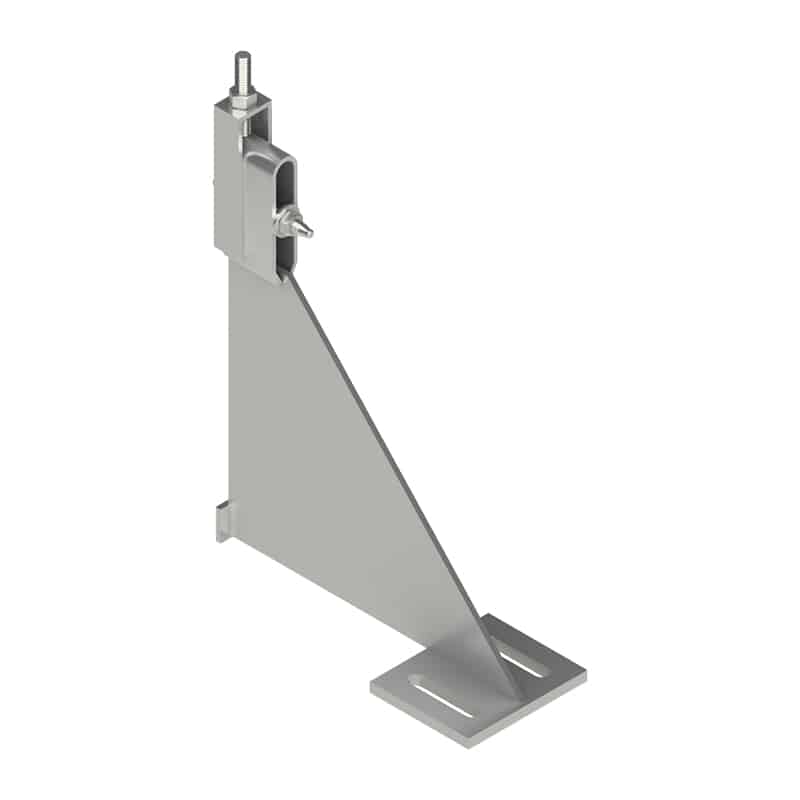

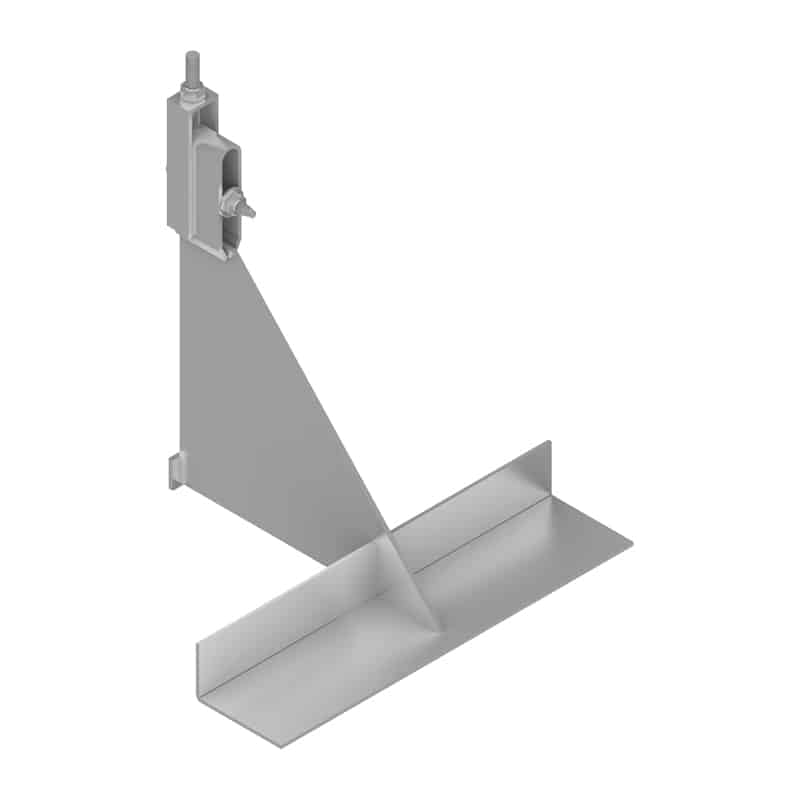

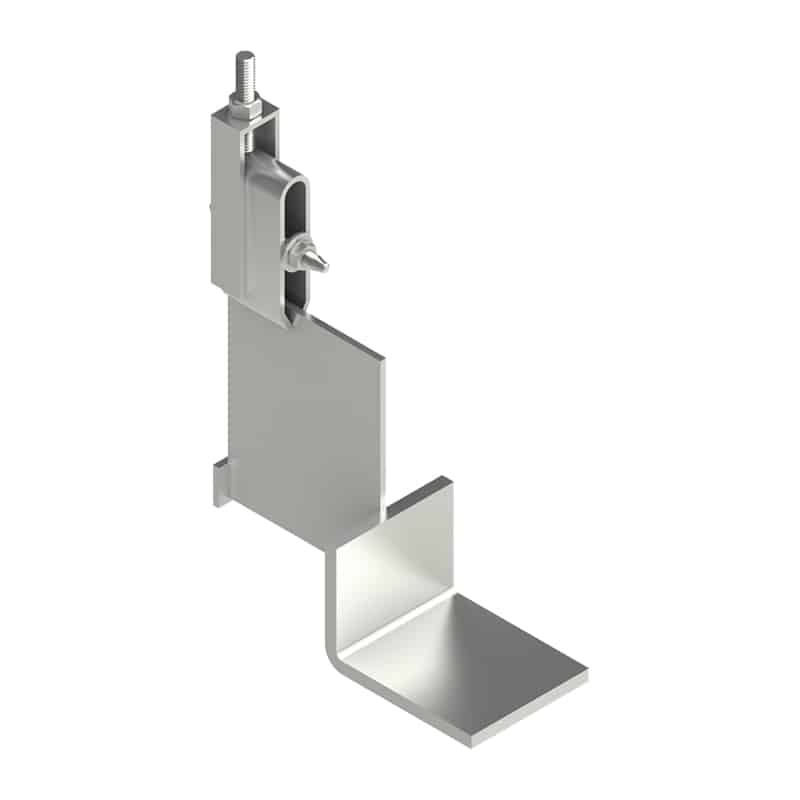

The production of various types of brickwork support systems is available at HAZ Metal. There is a standard product range shown below. Special parts can be produced according to project requirements. Technical service is available for proposing fixing systems and design is prepared showing all relevant details. This systems can be manufactured in stainless steel grade 1.4401 (A4) & 1.4301 (A2).
